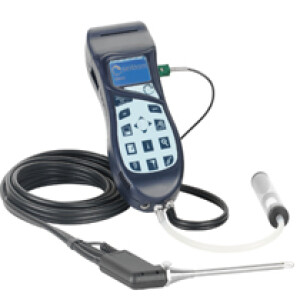

CHEMIST 500: new Seitron Combustion analyzers

• Compliant with EN 50379-1 and EN 50379-2

• Up to 4 measurement cells: O2, CO/H2, NO, NO2 and SO2

• CO measurement cell with 1 ppm resolution and built in NOX/SOX filter

• Precalibrated gas sensors, field replaceable

• Flue gas and outdoor air temperature measurement

• Draft and differential pressure measurement

• Boiler efficiency calculation

• Automatic detection of condensing boiler with efficiency calculation

• CO2, heat stack loss, excess air calculation

• Ambient CO measurement

• Gas pipe tightness test

• High accuracy (± 0.5 Pa) and resolution (0.1 Pa) draft measurement with external accessory

• 3 consecutive analysis with average calculation and result printout

• Thermal printer with paper load open/close type and no paper sensor

• Internal memory for 900 analysis

• Big colour (54 x 96 mm) graphic TFT backlit with zoom feature

• Rechargeable Lithium Ion batteries

• Battery charger type Wall Mount with USB connector type A 5V 2A

• Recharging time: 6 hrs. up to 90%

• Up to 12 hrs. autonomy of continuous operation (no printouts)

• Up to 40 analysis autonomy (with printouts)

• Additional dilution pump for CO cell auto range, measurement up to 50,000 ppm

• Automatic Autozero with sampling probe in the stack

• USB connection type B to connect PC and battery charger

• Bluetooth communication

• Self diagnostic function with alarms on gas sensors end-of-life

• 180, 300, 750 and 1000 mm flue gas sensor probes

• 300 mm flexible flue gas sensors sampling probe

• External condensation trap and dust filter

• 12 preprogrammed fuels, including pellets, wood and biogas

• 32 additional programmable fuels

• 10 different languages preprogrammed

• Neoprene holster

• PC software and video manual on USB pendrive

• User manual and calibration certificate

• Dimensions H323 x W100 x D68 mm, weight 950 g.

MODELS:

CHEMIST 501 B

Gas analyzer kit with 2 sensors (O2, CO), no expandable, with built in thermal printer, with no dilution pump for CO. Not suitable for tightness test UNI 7129/11137.

CHEMIST 501

Gas analyzer kit with 2 sensors (O2, CO/H2), no expandable, with built in thermal printer, with no dilution pump for CO, with flue gas interception EV. Suitable for tightness test UNI 7129/11137.

CHEMIST 502 B

Gas analyzer kit with 2 sensors (O2, CO/H2), expandable up to 4 sensors, with built in thermal printer, with no dilution pump for CO, with flue gas interception EV. Suitable for tightness test UNI 7129/11137.

CHEMIST 502

Gas analyzer kit with 2 sensors (O2, CO/H2), expandable up to 4 sensors, with built in thermal printer, with dilution pump for CO, with flue gas interception EV. Suitable for tightness test UNI 7129/11137.

CHEMIST 502 C

Gas analyzer kit with 2 sensors (O2, CO) expandable, suitable for pellet and wood stove (CO sensor 0-20000ppm), with built in thermal printer, with dilution pump for CO, with flue gas interception EV. Suitable for tightness test UNI 7129/11137.

CHEMIST 503

Gas analyzer kit with 3 sensors (O2, CO/H2, NO), expandable up to 4 cells, with built in thermal printer, with dilution pump for CO, with flue gas interception EV. Suitable for tightness test UNI 7129/11137.

CHEMIST 504 N

Gas analyzer kit with 4 sensors (O2, CO/H2, NO, NO2), with built in thermal printer, with dilution pump for CO, with flue gas interception EV. Suitable for tightness test UNI 7129/11137.

CHEMIST 504 S

Gas analyzer kit with 4 sensors (O2, CO/H2, NO, SO2), with built in thermal printer, with dilution pump for CO, with flue gas interception EV. Suitable for tightness test UNI 7129/11137.

CHEMIST 500 X: MODULAR GAS ANALYZER KIT WITH 4 SENSORS

The basic kit Chemist 500 X allows to exploit completely the expandability up to 4 gas measuring cells of analysers range Chemist 500. Chemist 500 X has got O2 gas measuring cell only: the 3 cells which can be added to O2 cell are to be choosen between 14 references, allowing to measure with different ranges, accuracies and resolution up to 6 gases: CO (carbon monoxide), NO (nitrogen monoxide), NO2 (Nitrogen dioxide), SO2 (sulphur dioxide), CxHy (unburnt hydrocarbons), CO2 (carbon dioxide). It is also available a cell with high sensitivity to Methane / LPG allowing to use flue gas probe as a sniffer probe.

This enormous versatility makes it possible to generate 352 different anlayzers as a result of cells combinations, so fulfilling the needs of many different applications.
