Fiorivpanel rivets for photovoltaics

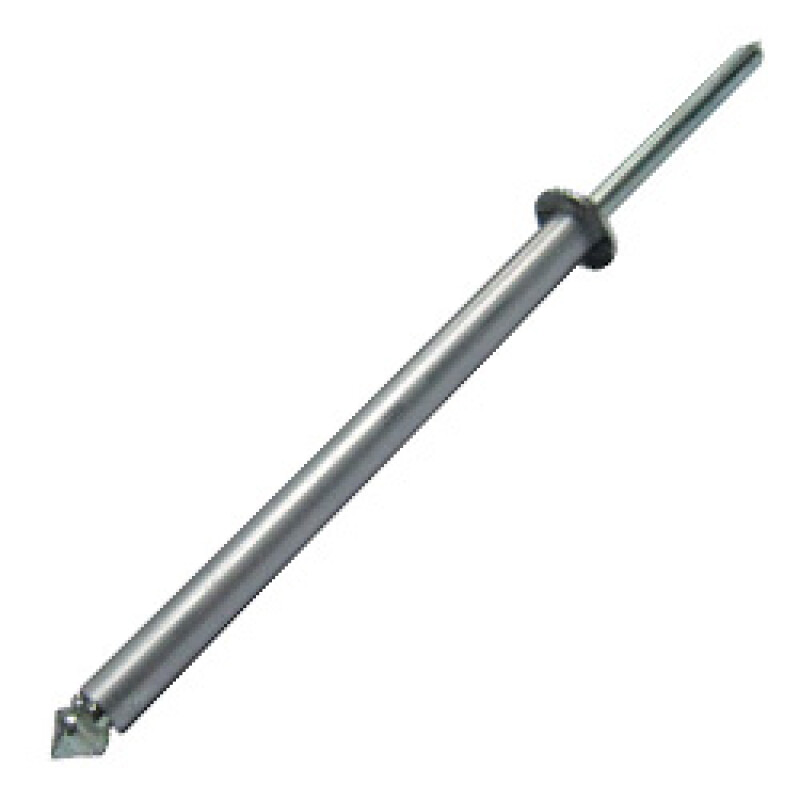

The Fiorivpanel rivets for photovoltaics, unlike the standard Fioriv rivets on the market, feature an aluminum body and a dome-head, zinc coated steel mandrel.
Description
They are designed to be used as fastening system on corrugated sandwich panels for insulated coverings and on brick hollow flat blocks. This rivet, in fact, has a low resistance tensile strength, so that, during setting, there is no possibility for the mandrel to come out of the body.

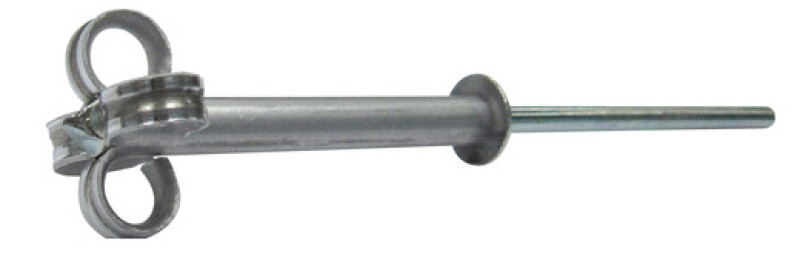

The main characteristic of the Fioriv rivets consists in four notches under the head of the mandrel which, in the pulling phase, cut and deform the rivet body into the typical shape of an anchor.
The Fiorivpanel rivets for photovoltaics are available in Ø 6,4mm to grip thicknesses from 40,0mm min. to 235mm max.
Recommended tools to install this kind of rivets for photovoltaics are the hand RIV7, the hydropneumatic RIV500 and the battery powered RIV750 and RIV760.
The main characteristic of the Fioriv rivets consists in four notches under the head of the mandrel which, in the pulling phase, cut and deform the rivet body into the typical shape of an anchor.
The Fiorivpanel rivets for photovoltaics are available in Ø 6,4mm to grip thicknesses from 40,0mm min. to 235mm max.
Recommended tools to install this kind of rivets for photovoltaics are the hand RIV7, the hydropneumatic RIV500 and the battery powered RIV750 and RIV760.
Technical features
Applications
