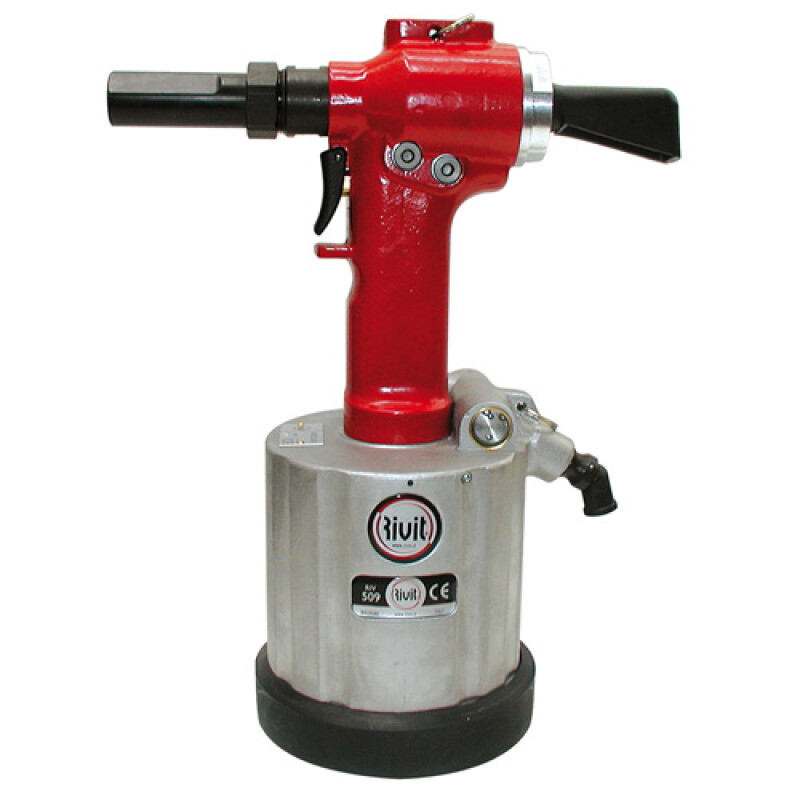

Hydropneumatic RIV509 tool
The hydropneumatic RIV509 tool is particularly designed to place Rivlock and Rivlockgrip blind bolts from d. 6,4mmm up to d.10,0mm.
Description
The innovative technical devices adopted to put this tool together, allowed a reduction in weight and dimension, giving a very good solution to all the limits generated by the volume of the control unit, which has been eliminated. Moreover the tool is very practical, handy and perfect to be used almost anywhere.
RIV509 operated with both a very strong pull force and a very strong reversal force (hydropneumatic piston); the second one is a must to make the ejection of the collar possible.
RIV509 operated with both a very strong pull force and a very strong reversal force (hydropneumatic piston); the second one is a must to make the ejection of the collar possible.
Technical features
Air working pressure: 6 bar
Min/max air pressure: 5/7 bar
Air consumption per cycle (6 bar): 14 litri
Stroke: 19 mm
Max power (6 bar): 35000 N
Weight with head: 4,5 Kg
Min/max air pressure: 5/7 bar
Air consumption per cycle (6 bar): 14 litri
Stroke: 19 mm
Max power (6 bar): 35000 N
Weight with head: 4,5 Kg
