The new Protherm range by Stulz assures the best performance and highest efficiency

of Stulz S.p.a

Contact the supplier

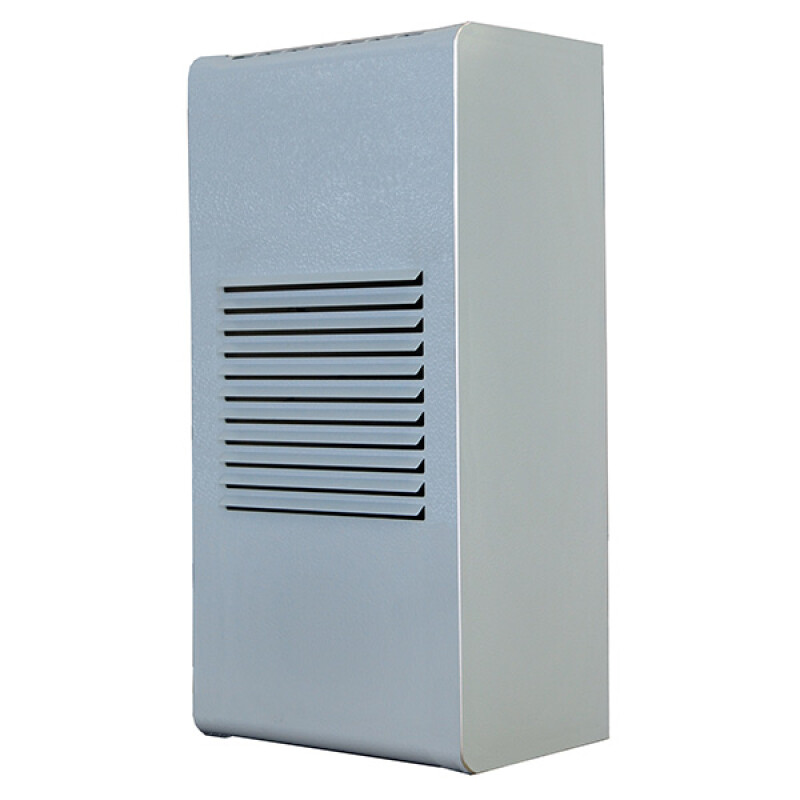

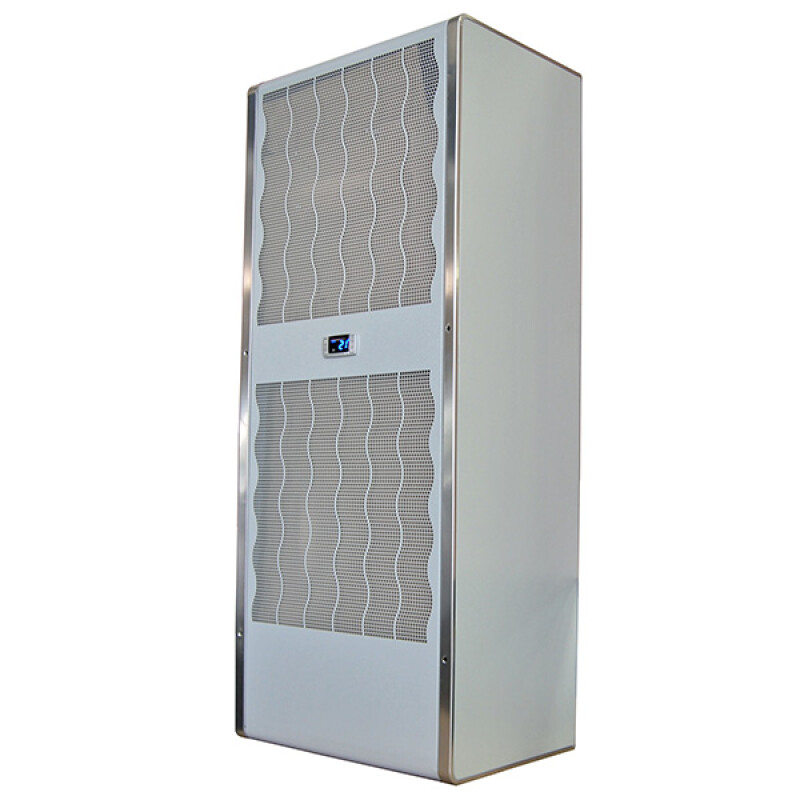

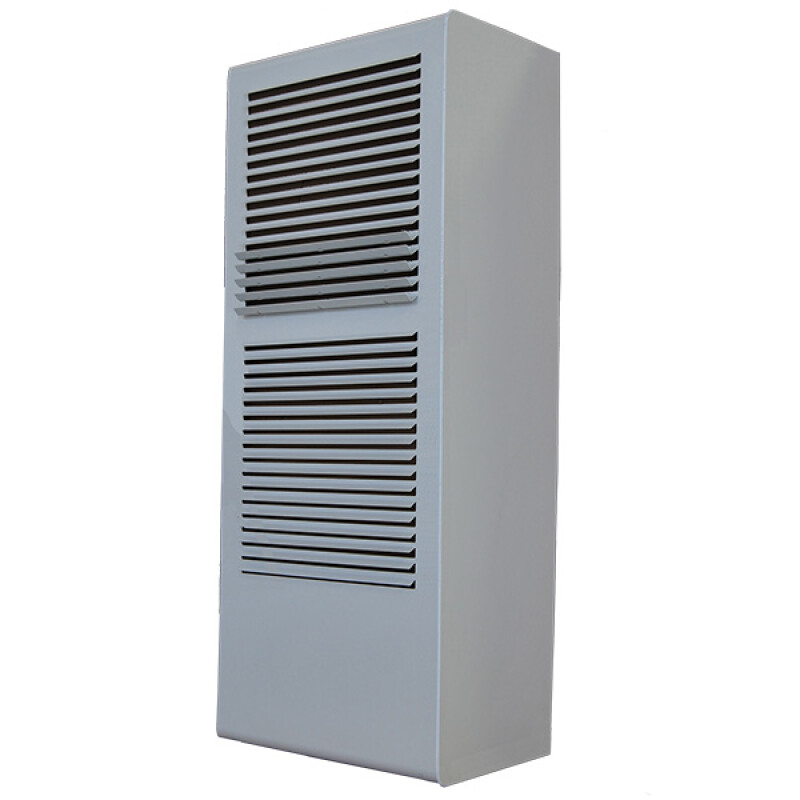

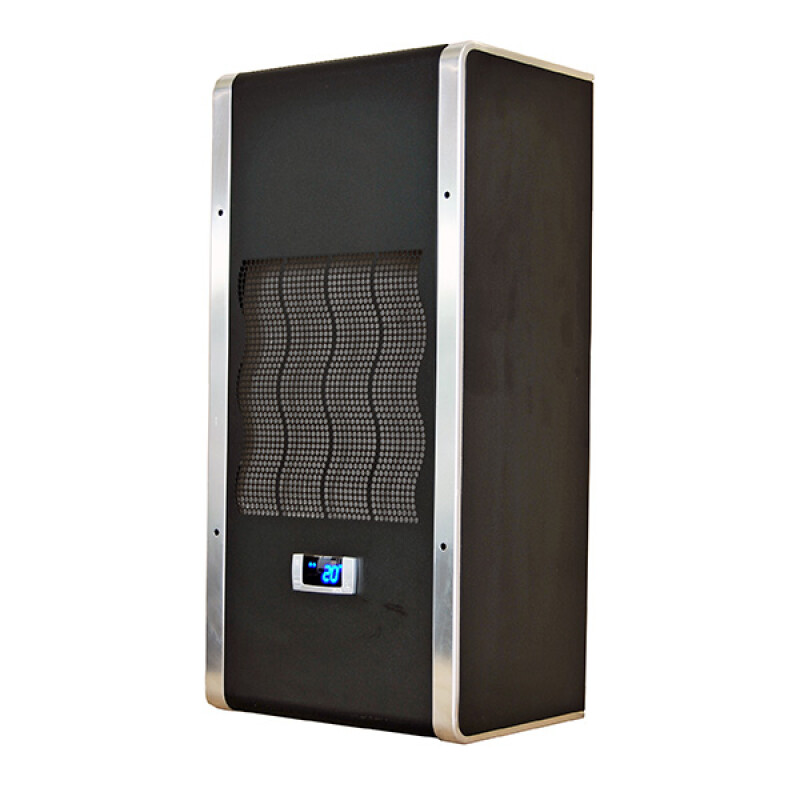

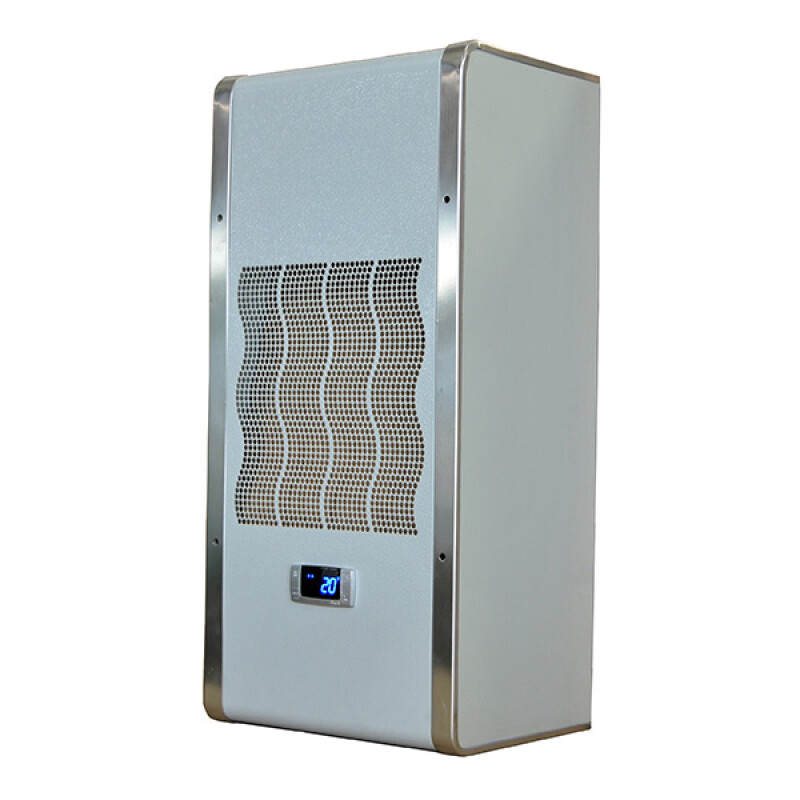

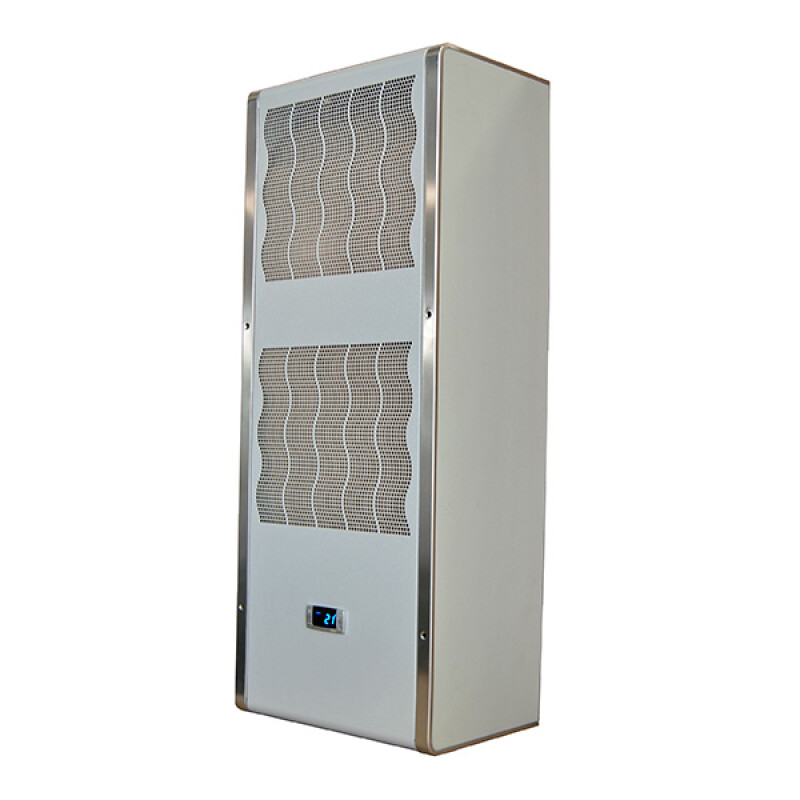

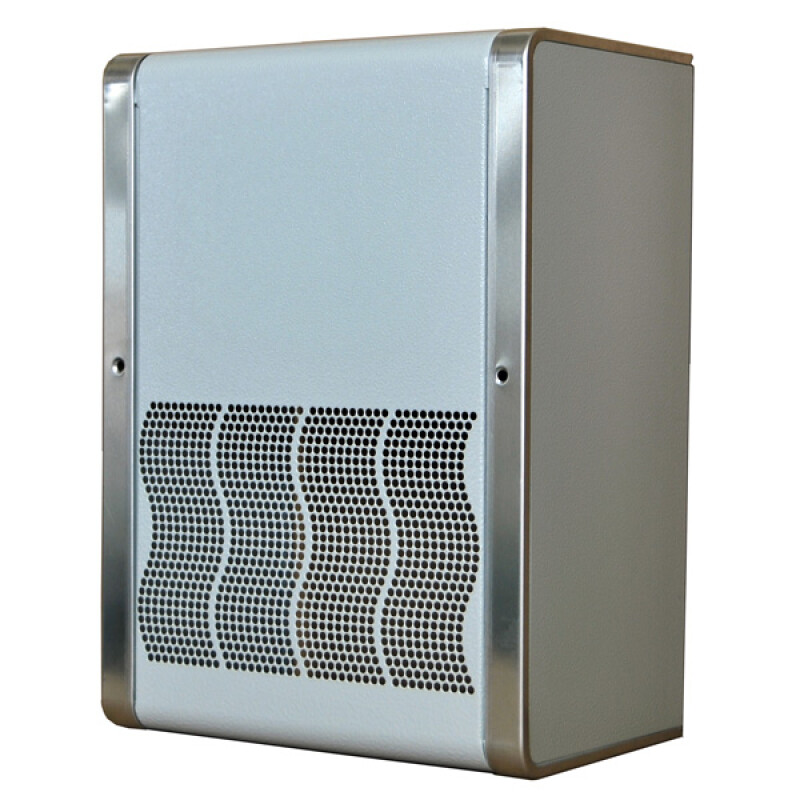

New Protherm includes air conditioners for electronic enclosures, both indoor (Cve) and outdoor (Cvo).

Info request Documents

Description

The new controller, available on all the models (except CVE03), is composed of an electronic board, placed in the internal side, and of a display. In Indoor units the display is installed on the panel, while in the outdoor unit is supplied separately.

Thanks to the new logic, the evaporator fan is turned off in presence of internal low temperature, which allows a considerable saving in power consumption. This procedure allows you to protect from rapid increases in temperature and further reduces the total power consumption of the evaporator fan.

Technical features

About New Protherm

Evaporator with hydrophilic treatment;
Micro-channel condenser;
Condensate water dissipator;
Mounting and installation;
Electrical connections;
Functioning up to – 40°C;
Test according to Uni 14511-2.

Accessories

Filter: external installation for Cve units, internal for Cvo;
Semi-flush and flush mounting frames;
Ip55 gasket • Remote probe for Sem² ;
Air baffle;
Sequencing cable • Serial port for Modbus.

Options

Ln version (modulating speed controller): modulation of the condenser fan in order to lower the noise level in presence of low external temperatures;
Control-phase module for three-phase units;
Heaters for Cvo units;
Epoxy / cataphoresis treatment on the condenser;
Inox Aisi 304 and Aisi 316 frames;
Special colour.

Other Features

Increased protection against external agents;
Contacts for general alarm and remote control as standard (except Cve03);
Air conditioner test procedure, in order to speed up the operating procedure test.
